Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: zheheng
Chứng nhận: ISO9001 PED
Số mô hình: 3"*sch40s
Tài liệu: Sổ tay sản phẩm PDF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: Có thể thương lượng
chi tiết đóng gói: Theo bó với vật liệu chống thấm nước, hoặc đóng gói bằng thùng gỗ
Thời gian giao hàng: 30 NGÀY
Điều khoản thanh toán: L/c, t/t, d/a, d/p
Khả năng cung cấp: 50TẤN/30 NGÀY
giấy chứng nhận: |
ABS, DNV, GL, BV, PED 97/23/EC |
Tiêu chuẩn: |
ASTM, A213 |
Kiểu: |
Liền mạch |
Kỹ thuật: |
cuộn nguội |
Tên: |
Ống thép không gỉ liền mạch TP32H |
Vật liệu: |
TP321H / S32109 / 1.4878 / X10CRNITI1810 |
giấy chứng nhận: |
ABS, DNV, GL, BV, PED 97/23/EC |
Tiêu chuẩn: |
ASTM, A213 |
Kiểu: |
Liền mạch |
Kỹ thuật: |
cuộn nguội |
Tên: |
Ống thép không gỉ liền mạch TP32H |
Vật liệu: |
TP321H / S32109 / 1.4878 / X10CRNITI1810 |
TP321H / S32109 / 1.4878 / X10CRNITI1810 Cold Roll Stainless Steel Seamless Pipe Chemical Properties
We supply US,CN,EU 1.4307 / 321 / 06Cr18Ni11Ti/ 1.4541 /321H /316L / 022Cr17Ni12Mo2 /1.4404 /316H / 07Cr17Ni12Mo2 / 316Ti / 06Cr17Ni12Mo2Ti / 1.4571 SEAMLESS STAINLESS STEEL PIPE CASTM A312 TP321 Stainless Steel Seamless Pipes & Tubes to Oil & Gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, Construction, Mining, Shipbuilding, Offshore, Defence, Ports, Railway, Nuclear Power, Power Plant, Cement, Government Org., Engineering Co., Oil Mills, and other industrial projects.
TP321H / S32109 / 1.4878 / X10CRNITI1810 seamless pipe description:
| Material: | TP321H / S32109 / 1.4878 / X10CRNITI1810 Cold Roll Stainless Steel Seamless Pipe Chemical Properties |
| Standard: | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Size: | ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm) |
| Length: | Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10 |
| Surface: | Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on. |
| Application: | Decoration, construction and upholstery, etc |
| Package: | Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request |
| Lead Time: | 7-10days for one FCL Or according to order list detail |
| Payment: | A: 100% T/T advance. ( For small order.) B: 30% T/T and balance against copy of documents. C: 30% T/T advance, balance L/C at sight D: 30% T/T , balance L/C usance E: 100% L/C usance. F: 100% L/C at sight. |
| Sample: | we could offer the sample for free charge but do not pay the cost of freight. |
US,CN,EU 1.4307 / 321 / 06Cr18Ni11Ti/ 1.4541 /321H /316L / 022Cr17Ni12Mo2 /1.4404 /316H / 07Cr17Ni12Mo2 / 316Ti / 06Cr17Ni12Mo2Ti / 1.4571 SEAMLESS STAINLESS STEEL PIPE CHEMICAL COMPARISON TABLE
| STEEL/GRADE | C | Mn | P | S | Si | Ni | Cr | Mo | Ti | N | OTHER |
| 1.4307 | 1.4307 | 0.03 | 2 | 0.045 | 0.015 | 1 | 8~10 | 17.5~19.5 | ||||
| 321 | S32100 | 0.08 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | 5C-0.7 | |||
| 06Cr18Ni11Ti | S32168 | 0.08 | 2 | 0.035 | 0.03 | 1 | 9~12 | 17~19 | 5C~0.7 | |||
| 1.4541 | 1.4541 | 0.08 | 2 | 0.045 | 0.015 | 1 | 9~12 | 17~19 | 5C~0.7 | |||
| 321H | S32169 | 0.04~0.1 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | 4C~0.7 | |||
| 316L | S31603 | 0.03 | 2 | 0.045 | 0.03 | 1 | 10~14 | 16~18 | 2-3 | |||
| 022Cr17Ni12Mo2 | S31603 | 0.03 | 2 | 0.035 | 0.03 | 1 | 10~14 | 16~18 | 2-3 | |||
| 1.4404 | 1.4404 | 0.03 | 2 | 0.045 | 0.015 | 1 | 10~13 | 16.5~18.5 | 2-2.5 | |||
| 316H | S31609 | 0.04~0.1 | 2 | 0.045 | 0.03 | 1 | 10~14 | 16~18 | 2-3 | |||
| 07Cr17Ni12Mo2 | S31609 | 0.04~0.1 | 2 | 0.035 | 0.03 | 1 | 10~14 | 16~18 | 2-3 | |||
| 316Ti | S31635 | 0.08 | 2 | 0.045 | 0.03 | 1 | 10~14 | 16~18 | 2-3 | 5(C+N)~0.7 | ||
| 06Cr17Ni12Mo2Ti | S31668 | 0.08 | 2 | 0.035 | 0.03 | 1 | 10~14 | 16~18 | 2-3 | 5C~0.7 | ||
| 1.4571 | 1.4571 | 0.08 | 2 | 0.045 | 0.015 | 1 | 10.5~13.5 | 16.5~18.5 | 2-2.5 | 5C~0.7 |
Mechanical Properties complementary:
1 Tensile Requirements:
1.1 The material shall conform to the requirements as to
tensile properties
1.3 One tension test shall be made on a specimen from one
tube for lots of not more than 50 tubes. Tension tests shall be
made on specimens from two tubes for lots of more than 50
tubes. See 15.2.
2 Hardness Requirements:
2.1 The material shall conform to the hardness require-
ments

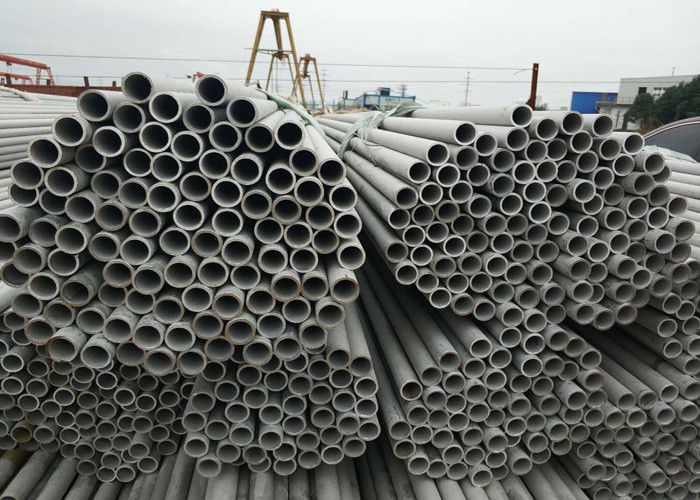

product show for reference:
