Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: zheheng
Chứng nhận: ISO9001 PED
Số mô hình: 3"*sch10s
Document: Sổ tay sản phẩm PDF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: có thể đàm phán
chi tiết đóng gói: Theo bó với vật liệu chống thấm nước, hoặc đóng gói bằng thùng gỗ
Thời gian giao hàng: 30 NGÀY
Điều khoản thanh toán: L/c, t/t, d/a, d/p
Khả năng cung cấp: 100TẤN/30 NGÀY
Vật liệu: |
Bơm thép không gỉ vệ sinh |
Tiêu chuẩn: |
A270 |
Kiểu: |
liền mạch hoặc hàn |
Kỹ thuật: |
cán nguội |
Hoàn thành: |
sơn |
Ứng dụng: |
bọc đệm |
Vật liệu: |
Bơm thép không gỉ vệ sinh |
Tiêu chuẩn: |
A270 |
Kiểu: |
liền mạch hoặc hàn |
Kỹ thuật: |
cán nguội |
Hoàn thành: |
sơn |
Ứng dụng: |
bọc đệm |
A270 Sanitary Stainless Steel Pipe Seamless and Welded Austenitic Stainless Steel Sanitary Pipe
we supply A270 standard Standard Specification for Seamless and Welded Austenitic Stainless Steel Sanitary Tubing Material furnished under this specification shall con-
form to the applicable requirements of the current edition
of Specification A 450/A 450M, unless otherwise provided
herein.
Our inventory is computerized so our employees can respond quickly to all your requests. If a specific product is not in stock when you request it, we guarantee same day shipping or shortest lead time available.
Our regular feture products are 304/304L,316L, 321,310s,austentic serious ,duplex steel 2205 ,hastelloy c276,inconel 625 ,and super stainless steel 904L , All of our products meet or exceed AISI/ASTM A213 ,A269,A312,EN 10216,GHOST 9941 ,GB,JIS standard. per your specific requirements and include full documentation.
Size:ANSI /ASME size is under,other standard of size is for ready choice
O.D.:0.23''to 48''(5.8-1219mm)
W.T.:0.04''to 2''(1.0-50.8mm)
Length:Max.18 Meter
NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10
Stainless Steel Pipe Surface finish:Annealed,Polished
Process Method:Cold Drawn/Cold Rolled
Delivery Condition:Annealed & Pickled
product description:
| 1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
| 2.100% Dimension & Visual Examination |
| 3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
| 4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
| 5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
| 6.Straightness Test (optional) |
| 7.Roughness Test (optional) |
| 8.Intergranular Corrosion Test(optional) |
| 9.Impact Test (optional) |
| 10.Grain Size Determinations (optional) |
| NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
| Production Range: | |
| Austenitic Steel: | TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… |
| Duplex Steel : | S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439 ... |
| Russia Standard | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т, 12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, |
| European Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571, 1.4438,1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
Hydrostatic or Nondestructive Electric Test
Each tube shall be subjected to the nondestructive
electric test or the hydrostatic test. The type of test to be used
shall be at the option of the manufacturer, unless otherwise
specified in the purchase order.

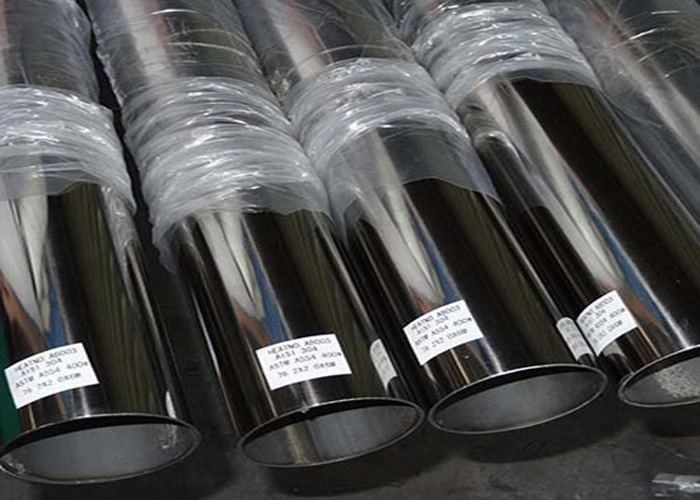

product show:
