Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: zheheng
Chứng nhận: ISO9001 PED
Số mô hình: 8"*sch10s
Tài liệu: Sổ tay sản phẩm PDF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: Có thể thương lượng
chi tiết đóng gói: Theo bó với vật liệu chống thấm nước, hoặc đóng gói bằng thùng gỗ
Thời gian giao hàng: 30 NGÀY
Điều khoản thanh toán: L/c, t/t, d/a, d/p
Khả năng cung cấp: 50TẤN/30 NGÀY
Vật liệu: |
đường kính lớn Ống thép không gỉ tường mỏng |
Tiêu chuẩn: |
ASTM, A213 |
Kiểu: |
Liền mạch |
Kỹ thuật: |
vẽ lạnh |
OD: |
219mm |
WT: |
3,76mm |
Vật liệu: |
đường kính lớn Ống thép không gỉ tường mỏng |
Tiêu chuẩn: |
ASTM, A213 |
Kiểu: |
Liền mạch |
Kỹ thuật: |
vẽ lạnh |
OD: |
219mm |
WT: |
3,76mm |
large diameter Thin wall stainless steel pipe / Stainless Steel Seamless Pipe
we can supply to you large diameter thin wall stainless steel pipes in china,we are not only stockholder but also we are producer with many years experence in ss pipes production:
Stainless steel is a production which not easy rust,acid resistance and corrosion resistance,so it is widely used in light industry,heavy industry,daily necessities and the decoration industry.My company long-term supply stainless steel products including:stainless steel tube&pipe, stainless steel bar, stainless steel plate&sheet, stainless steel wire etc.
2.Description:
| Description | Stainless Steel pipe |
| Supply Capacity | 10000 tons/year |
| Process Method | cold drawn and cold rolled |
| Out Diameter | 6-711mm |
| Wall Thickness | 0.5-40mm |
| Length | 6-25 meters |
| Steel Grade | 200 (Ni : 0.8%), 201B (Ni : 3%), 201H (Ni : 5%) |
| 301 (Ni : 6%), 304, TP304, TP304L/304L, 321, TP321, 316, TP316L, 316L, 316Ti | |
| 317, 317L, 309S, 310S(2520), 347, Duplex 2205, Duplex 2207, etc. | |
| Standards | ASTM / ASME, GB, DIN, JIS, T14975, etc. |
| Specification | O.D: 1/4" - 32" (inch) |
| W.T: SCH5S, SCH10S,SCH40S,SCH80S,SCH160S,etc. | |
| Or non-regular size to be tailored as required. | |
3. Material
3.1Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 201(1Cr17Mn6Ni5N) | ≤0.15 | ≤1.0 | ≤5.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | — | ≤0.25 |
| 202(1Cr18Mn8Ni5N) | ≤0.15 | ≤0.07 | ≤7.5 | ≤0.06 | ≤0.03 | 4.0-6.0 | 17.0-19.0 | — | ≤0.25 |
| 304(0Cr18Ni9) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
| 304L(00Cr18Ni10) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
| 305 | ≤012 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.5-13.0 | 17.0-19.0 | ||
| 316(0Cr17Ni12Mo2) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 316L(0Cr17Ni14Mo2) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 309s | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.03 | 12.00-15.00 | 22.00-24.00 | ||
| 310s | ≤0.08 | ≤1.50 | ≤2.0 | ≤0.045 | ≤0.03 | 19.00-22.00 | 24.00-26.00 | ||
| 317l | ≤0.03 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.03 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |
3.2 Mechanical Property:
| ASTM | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation (%) | Hardness (HRB) |
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥482 | ≥170 | ≥40 | ≤88 |
| 305 | ≥480 | ≥175 | ≥40 | ≤200 |
| 309S | ≥520 | ≥205 | ≥40 | ≤200 |
| 316 | ≥515 | ≥205 | ≥40 | ≤95 |
| 316L | ≥485 | ≥170 | ≥40 | ≤95 |
| 317L | ≥480 | ≥175 | ≥40 | ≤200 |
4.0 Application:
|
Application
|
Architectural/Civil Engineer | Handrails, door and window fittings, steel furniture, structural sections etc |
| Transport | Exhaust systems, car trim, road tankers, ship containers, ships chemical tankers etc | |
| Chemical/Pharmaceutical | Pressure vessels, process piping etc | |
| Oil & Gas | Platform accomodation, cable trys, subsea pipelines etc | |
| Water | Water and sewage treatment, water tubing, hot water tankers etc | |
| Medical | Surgical instruments, surgical implanets, MRI scanners etc. | |
| Food & Drink | Catering equipment, brewing, food processing etc |

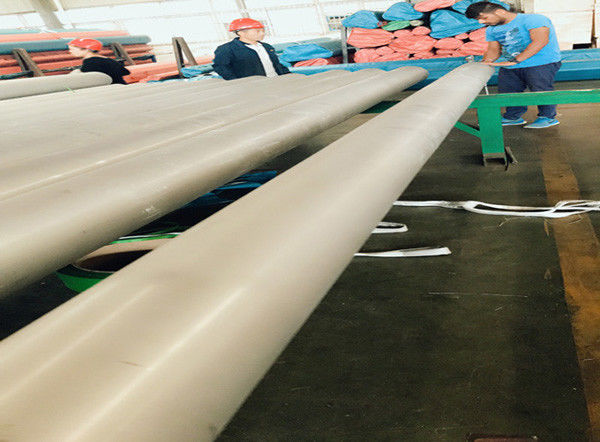

product show :
