Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: zheheng
Chứng nhận: ISO9001 PED
Số mô hình: 6mm--710mm
Tài liệu: Sổ tay sản phẩm PDF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: Có thể thương lượng
chi tiết đóng gói: Theo bó với vật liệu chống thấm nước, hoặc đóng gói bằng thùng gỗ
Thời gian giao hàng: 30 NGÀY
Điều khoản thanh toán: L/c, t/t, d/a, d/p
Khả năng cung cấp: 50TẤN/30 NGÀY
Vật liệu: |
304 |
Tiêu chuẩn: |
ASTM a312 213 |
hình dạng: |
Hình tròn |
Kỹ thuật: |
Liền mạch |
Ứng dụng: |
Cửa ra vào và cửa sổ |
Bưu kiện: |
Đóng gói dệt |
Vật liệu: |
304 |
Tiêu chuẩn: |
ASTM a312 213 |
hình dạng: |
Hình tròn |
Kỹ thuật: |
Liền mạch |
Ứng dụng: |
Cửa ra vào và cửa sổ |
Bưu kiện: |
Đóng gói dệt |

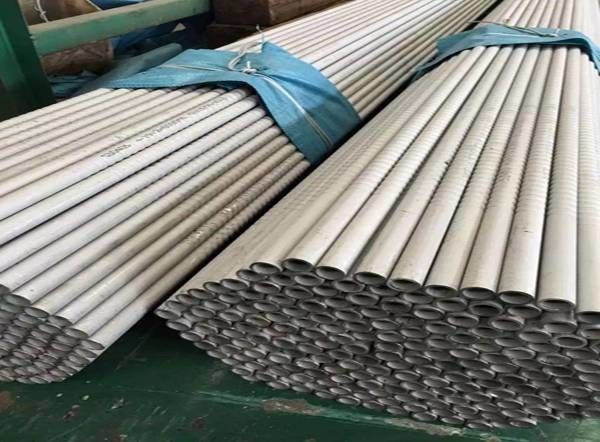

304 Stainless Steel Seamless Pipe sch10
304 stainless steel seamless pipe is a hollow long strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial conveying pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used to produce a variety of conventional weapons, barrels, shells and so on. Steels that are open at both ends and have a hollow section, and whose length is larger than the circumference of the section, can be called steel pipes. When the length is small compared to the perimeter of the section, it can be called a pipe section or a tubular fitting, which are all in the category of pipe products.
1) Product name: stainless steel seamless pipe, stainless steel tube, stainless steel tube, stainless steel tube
2) Product type: stainless steel rolling, perforation, cold drawing, pickling, cold rolling, etc.
3) Processing method: mechanical straight pull, two-roll cold rolling
4) Surface treatment: annealing pickled surface, polished bright surface
5) Production size: outer diameter 10-219mm, wall thickness 1-10mm, length can be cut according to customer requirements
6) Product material: 304,321,316 stainless steel
[304 stainless steel tube]:
1) Product name: stainless steel welded pipe, sanitary grade welded pipe, stainless steel fine drawn pipe, stainless steel cold rolled pipe
3) Processing methods: argon arc welding, plasma welding, in-line annealing
4) Surface treatment: annealing pickled surface, polished bright surface, on-line bright annealing
5) Production size: outer diameter 19-325mm, wall thickness 1-4mm, length can be cut according to customer requirements
6) Product material: 304,321,316 stainless steel
| Dimensions for ASME/ANSI Standards | Unit:mm | ||||||||||||
| B16.9 B16.28 B36.10 | |||||||||||||
| Nominal pipe Size(NPS) | Outside Diameter | Nominal Wall Thickness | |||||||||||
| Sch5s | SCH10S | Sch20 | Sch30 | Sch40 | STD | Sch80 | XS | Sch160 | XXS | ||||
| 8 | 1/4 | 13.7 | 0.54 | - | 1.65 | - | 1.85 | 2.24 | 2.24 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.1 | 0.675 | - | 1.65 | - | 1.85 | 2.31 | 2.31 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.3 | 0.84 | 1.65 | 2.11 | - | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.7 | 1.05 | 1.65 | 2.11 | - | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.4 | 1.32 | 1.65 | 2.77 | - | 2.90 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1.1/4 | 42.2 | 1.66 | 1.65 | 2.77 | - | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1.1/2 | 48.3 | 1.90 | 1.65 | 2.77 | - | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.3 | 2.38 | 1.65 | 2.77 | - | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2.1/2 | 73.0 | 2.88 | 2.11 | 3.05 | - | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 |
