Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: zheheng
Chứng nhận: ISO9001 PED
Số mô hình: 19.05mm
Tài liệu: Sổ tay sản phẩm PDF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: Có thể thương lượng
chi tiết đóng gói: Theo bó với vật liệu chống thấm nước, hoặc đóng gói bằng thùng gỗ
Thời gian giao hàng: 30 NGÀY
Điều khoản thanh toán: L/c, t/t, d/a, d/p
Supply Ability: 30TONS/30DAYS
Kiểu: |
Liền mạch |
Kỹ thuật: |
vẽ lạnh |
OD: |
19.05mm |
WT: |
0.89mm,1.24mm.1.65mm,2.11mm |
Tiêu chuẩn: |
ASTM, AISI |
Ứng dụng: |
Công nghiệp hóa chất |
Mác thép: |
Dòng 300,304 |
Bề mặt: |
đánh bóng, sáng |
Length: |
249m |
Kiểu: |
Liền mạch |
Kỹ thuật: |
vẽ lạnh |
OD: |
19.05mm |
WT: |
0.89mm,1.24mm.1.65mm,2.11mm |
Tiêu chuẩn: |
ASTM, AISI |
Ứng dụng: |
Công nghiệp hóa chất |
Mác thép: |
Dòng 300,304 |
Bề mặt: |
đánh bóng, sáng |
Length: |
249m |

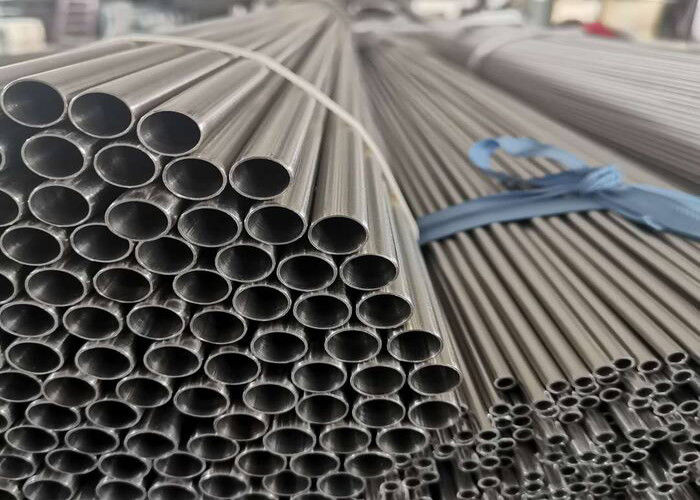

AISI Cold Drawn Stainless Steel Coil Tubing For Chemical Industry
Because the stainless steel heat exchange coil has very outstanding rust prevention, anti scaling and ety and health characteristics, and the heat transfer performance has reached the copper level, and the service life is longer than the copper pipe, more cost-effective.Therefore, stainless steel heat exchanger has been widely used in many fields at present.For example, medicine, boiler, heating, domestic water, air conditioning and other fields are involved.
According to the data of heat exchange equipment promotion center, the stainless steel heat exchanger has better heat transfer effect than the traditional carbon steel heat exchanger, and the service life is longer;Now the heat exchanger is generally used 304, 316, 316L, 321, 310S stainless steel material, different application areas will also choose different materials of stainless steel according to its performance requirements for heat exchanger.
1, the heat exchanger of food machinery and equipment should meet the ety and health standards, mostly 316 or 316L stainless steel heat exchange coil, and the polishing, cleanliness and corrosion resistance of the pipe fittings have strict requirements, after all, is in contact with food.
2, the life of the solar water tank, water heater and other general use of 304 stainless steel coil, required to be able to withstand the temperature of daily living water, oxidation resistance and anti-scaling.
3, boiler generally use 310S stainless steel heat exchange coil, this is a kind of austenitic chromium nickel stainless steel, has good oxidation resistance, corrosion resistance and high temperature resistance;Due to the high percentage of chromium and nickel, it has good multi-creep strength, can continue to work at high temperature, the maximum temperature resistance of 1200 ℃.
| The Features Of Our Stainless Steel Pipes Coils: | ||
| 1 | Commodity: |
Stainless Steel Cold Drawn Seamless Tubing In Coils & Pipe Coils (Made Of Cold-Drawn Pipe Billet Instead Of Plank-Welding) |
| 2 | Product advantages: | The Products Could Be Cut And Bent According To Different Requirement, Which Helps To Reduce Waste Cost, Especially Save Joints And Improve ety During Pipeline Installation. |
| 3 | Type: | Austenitic stainless steel seamless pipe. |
| 4 | Process Method: | Cold Drawn / Cold Rolled. |
| 5 | Surface Finish: | Bright Annealed |
| 6 | Grade: | TP304, TP304L, TP316 / 316L Dual Grade. |
| 7 | Standard: | ASTM (ASME) SA / A312 /A213 /A269 And DIN, GB, JIS. |
| 8 | Size: | O.D3/16"- "(4.76mm-25.4mm), W.T 0.028"-0.065"(0.7mm-1.65mm). |
| 9 | Tolerance: | Outer Diameter: ±0.08mm(0.00315″), Wall Thickness: ±10%. |
| 10 | Length: | 100FT-1700FT,Or According To Customers' Requests. |
| 11 | Marking on pipes: | As Customer's Requirement. |
| 12 | Certification: | ISO9001:2000,GB/T19001-2000. |
Heat Treatment Assurance
A full-automatic natural gas furnace with 24 meters in length.The real temperature tolerance could be within
product show:
