Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: Zheheng steel
Chứng nhận: ISO9001
Số mô hình: 88,9mm
Tài liệu: Sổ tay sản phẩm PDF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: Có thể thương lượng
chi tiết đóng gói: Theo bó với vật liệu chống thấm nước, hoặc đóng gói bằng thùng gỗ
Thời gian giao hàng: 30 ngày
Điều khoản thanh toán: L/c, t/t, d/a, d/p
Khả năng cung cấp: 50TẤN/30 NGÀY
Tên sản phẩm: |
ống thép song công |
Material: |
S32003 |
Tiêu chuẩn: |
ASTM, GB, JIS, DIN, En, AISI |
Size: |
1mm-325mm |
Kỹ thuật: |
vẽ nguội |
Shipment: |
By see, air or others |
application: |
making chemical equipment |
Tên sản phẩm: |
ống thép song công |
Material: |
S32003 |
Tiêu chuẩn: |
ASTM, GB, JIS, DIN, En, AISI |
Size: |
1mm-325mm |
Kỹ thuật: |
vẽ nguội |
Shipment: |
By see, air or others |
application: |
making chemical equipment |

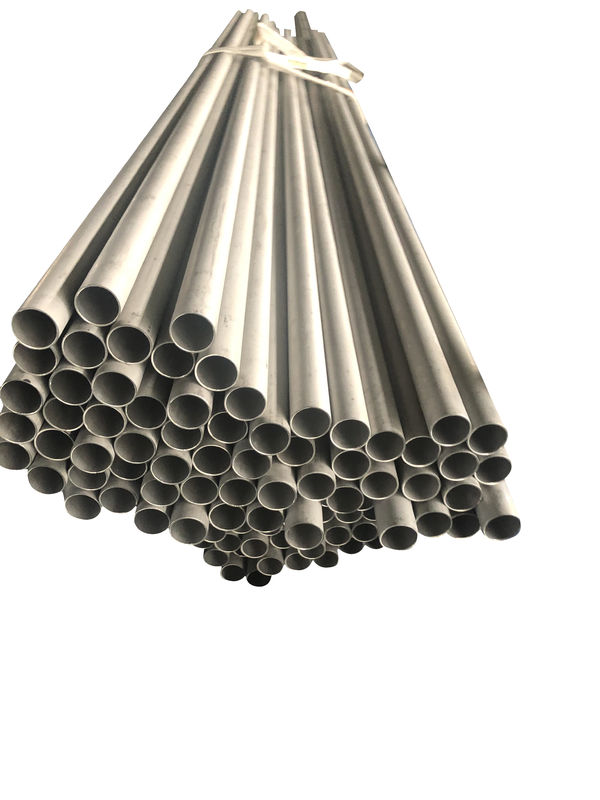

ATSM A790 Duplex stainless Steel Pipe S32003 Can be used in making chemical equipment
Product Discription:
022Cr21Ni3MoN (S32003)
Containing 1.5% Mo, combined with Cr and N to improve corrosion resistance, its corrosion resistance is better than 022Cr17Ni12Mo2 (316L stainless steel), close to 022Cr19Ni13Mo3 (317L stainless steel), is an ideal substitute for 022Cr17Ni12Mo2 (316L stainless steel). At the same time, the steel also has a high strength, can be used in chemical storage tanks, pulp and paper, building roofs, Bridges and other fields.
Features:
Duplex stainless steel corrosion resistant. They have strong resistance to inter-granular corrosion. Even in chloride and sulfide environments, duplex stainless steels show very high resistance to stress corrosion cracking. Duplex stainless steel work hardening alloy. Their micro-structure consists of austenitic phase and ferritic phase. Therefore, duplex stainless steel shows the characteristics of austenitic and ferritic stainless steel. This combination of properties may mean some compromise compared to pure austenite and pure ferrite.
Use of S32003 duplex stainless steel:
S32003 Duplex steel can be used to make chemical equipment, mechanical parts for use in corrosion resistant conditions, bolts and nuts, pressure vessels, etc
The components of S32003 are as follows:
| Designation | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu |
| S32003 | 0.030 | 2 | 0.030 | 0.020 | 1 | 3.0-4.0 | 19.5-22.5 | 1.5-2.0 | 0.14-0.20 | ... |
Tensile and Hardness Requirements about the S32003 Duplex steel pipe:
| Designation | Tensile Strength, min, ksi [MPa] |
Yield Strength, min, ksi [MPa] |
Elongation in 2 in. or 50 mm, min, % |
Hardness, max | |
| HBW | HRC | ||||
| S32003 | 90[620] | 65[450] | 25 | 290 | 30 |
MECHANICAL PROPERTIES FINAL HEAT TREATMENT:
Form: plate,sheet,strip
Tensile strength, σb/MPa: 620
Yield strength, σ0.2/MPa: 450
Elongation, δ(％): 29
Reduction of area, ф(％): -
Hardness | HRC(HBW): 31 (293)
PROFILE AND DIMENSIONS:
Round bar / Wire rod (Diameter): 5.5mm to 500mm
Square bar / Flat bar: 3mm to 650mm
Plate / Sheet steel / Steel strip: 0.1mm to 650mm
Width: 8mm to 1000mm
Length: random length or based on the customer's special requirement.
Forged steel shape: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM
About us:
Zheheng Steel is an excellent supplier of stainless steel pipes and other high quality industrial products. The pipeline range provided is manufactured according to national and international raw material quality standards. The industry is offering tubing in a variety of standards, sizes and specifications. According to customer requirements, we can provide various specifications of pipes according to customer requirements. Therefore, buyers can purchase products of different sizes, wall thicknesses, lengths, diameters, etc., according to their needs.
