Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: zheheng steel
Chứng nhận: iso9001
Số mô hình: 88,9mm
Tài liệu: Sổ tay sản phẩm PDF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: Có thể thương lượng
chi tiết đóng gói: Theo bó với vật liệu chống thấm nước, hoặc đóng gói bằng thùng gỗ
Thời gian giao hàng: 30 NGÀY
Điều khoản thanh toán: L/c, t/t, d/a, d/p
Khả năng cung cấp: 50TẤN/30 NGÀY
Vật liệu: |
TP321 |
Tiêu chuẩn: |
ASTM, GB, JIS, DIN, En, AISI |
hình dạng: |
SCH80 |
Kỹ thuật: |
vẽ nguội |
Mục đích: |
Công nghiệp hóa chất |
Bưu kiện: |
Đóng gói dệt |
OD: |
6-830mm |
Vật liệu: |
TP321 |
Tiêu chuẩn: |
ASTM, GB, JIS, DIN, En, AISI |
hình dạng: |
SCH80 |
Kỹ thuật: |
vẽ nguội |
Mục đích: |
Công nghiệp hóa chất |
Bưu kiện: |
Đóng gói dệt |
OD: |
6-830mm |

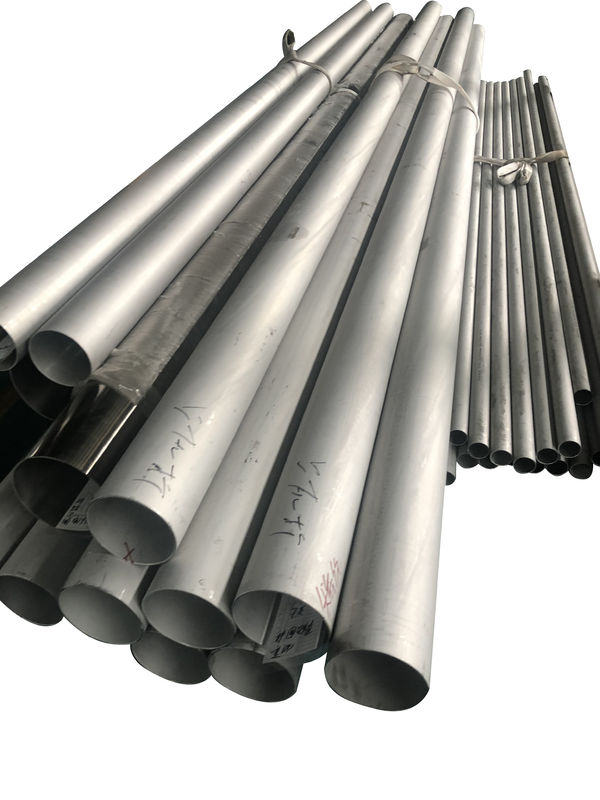

ASTM TP 321 Seamless Stainless steel Tube Sch80 Used in Heat Exchanger
Introduction to products:
AISI 321 stainless steel (SS321) is a standard austenitic 18/8 stainless steel grade with the addition of titanium (Ti), which stabilizes carbides against sensitization to prevent intergranular precipitation of chromium carbide when the steel is heated to a temperature within the sensitization range (such as during welding). Remarkably high strength as well as scaling resistance and phase stability set 321 Stainless Steel apart from other similar grades.
Description for our production range:
Name :Stainless Steel seamless Pipe
Standard :EN10216-5 , EN10216-2,DIN 17456 , DIN 17458,ASTM A312,
A213, A269, A511, A789, A790 ETC,GOST 9941 , GOST 5632,
JIS G3459 , JIS G3463,GB/T14975,GB/T14975, GB13296, GB5310, GB9948
Material Grade :
TP321/321H
Diameter :OD: 6-830mm
W.T: 0.6mm - 60mm
Length :Up to 13 meter or as customers' request
Tolerance :According to the Standard.
Surface :
Natural Color of annealing & pickling, 180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish
Test :
UT, ET, HT, RT,ect, and others according to the standard,
or as the requests of the customer
our products packing:
APPLICATIONS :
Physical Properties
AISI 321 steel physical properties are given in the following lists, including density, thermal expansion, elastic modulus, thermal conductivity, specific heat capacity and electrical resistance.
| SS321 Physical Properties | |
| Density, g/cm3 (lb/in.3) | 7.9 (0.29) |
| Melting point, °C (°F) | 1400-1425 (2550-2600) |
| Specific heat capacity, J/kg·K (Btu/lb ·°F) | 500 (0.12) at 20 °C |
| Electrical resistivity, μΩ·m | 0.72 at 20 °C |
| Magnetic permeability | 1.02 (Approximate) |
| Elastic modulus, GPa (106 psi) | 193 (28) |
| Thermal conductivity, W/m·K (Btu/ft · h ·°F) | 16.1 (9.3) at 100 °C (212 °F) |
| 22.2 (12.8) at 500 °C (932 °F) | |
| Coefficient of thermal expansion, 10-6/K (μin./in. ·°F) | 16.6 (9.2) at 0-100 °C (32-212 °F) |
| 17.2 (9.6) at 0-315 °C (32-600 °F) | |
| 18.6 (10.3) at 0-538 °C (32-1000 °F) | |
Notes:
10-6·K-1 = 10-6/K
1 Ω·mm²/m = 1 μΩ·m
1 g/cm3 = 1 kg/dm3 = 1000 kg/m3
1 GPa = 1 kN/mm2
1 MPa = 1 N/mm2
other supplement:
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8" TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
