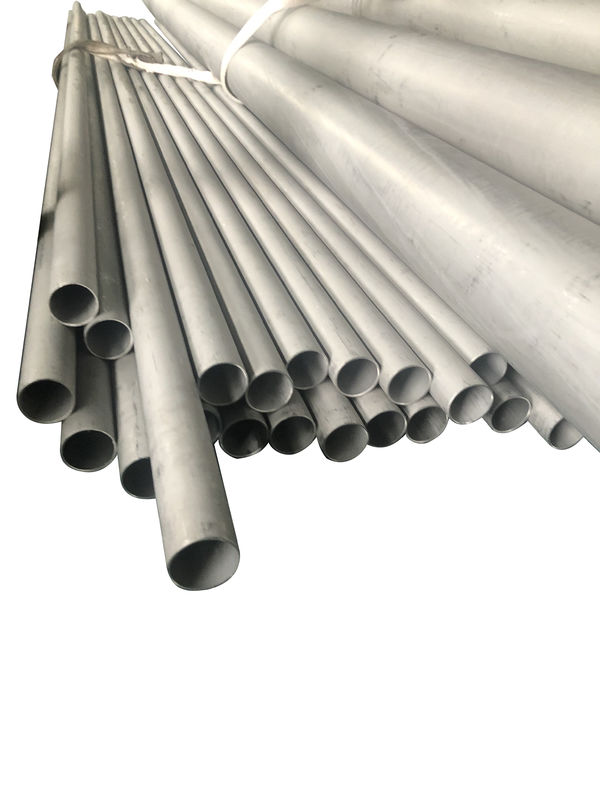

ASTM UNS S34700 Seamless Stainless Steel Tube Sch40S Used In Boiler Tube

ASTM UNS S34700 Seamless Stainless Steel Tube Sch40S Used in Boiler Tube

Introduction to products:

347 is a stable austenitic chromium steel that contains niobium and eliminates carbide precipitation, thereby eliminating intergranular corrosion. Alloy 347 is stabilized by the addition of chromium and tantalum and provides higher creep and stress fracture properties than alloys 304 and 304L, which can also be used for exposures requiring attention to sensitization and intergranular corrosion. The addition of columbium also makes alloy 347 have excellent corrosion resistance, even better than alloy 321. 347H is the higher carbon content form of alloy 347 and shows improved high temperature and creep properties.

Description for our production range:

our products packing:

APPLICATIONS :

• Stainless steel Reheater Tubes and Superheater Tubes for Boiler
• Aircraft exhaust manifolds
• Expansion joints
• Bellows
• Furnace parts
• Heating element tubing
• Heat Exchanger

Physical Properties

AISI 321 steel physical properties are given in the following lists, including density, thermal expansion, elastic modulus, thermal conductivity, specific heat capacity and electrical resistance.

Notes:

10-6·K-1 = 10-6/K

1 Ω·mm²/m = 1 μΩ·m

1 g/cm3 = 1 kg/dm3 = 1000 kg/m3

1 GPa = 1 kN/mm2

1 MPa = 1 N/mm2

other supplement:

1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8" TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
