ASTM TP 321H UNS Seamless Stainless Steel Tube Sch40S Stress Fracture Properties

ASTM TP321H Seamless Stainless steel Tube Sch40S stress fracture properties

Introduction to products:

Alloy 321 (UNS S32100) is a titanium-stabilized austenitic stainless steel with good corrosion resistance. It has good corrosion resistance to intergranular corrosion exposed to chromium carbide precipitate in the temperature range of 800-1500°F (427-816°C). The alloy is resistant to oxidation at up to 1500°F (816°C) and has higher creep and stress fracture properties than 304 and 304L. It also has good low temperature toughness. Alloy 321H (UNS S32109) is a higher carbon content (0.04-0.10) version of this alloy. It was developed to enhance creep resistance and increase strength at temperatures above 1000°F (537°C). In most cases, the carbon content of the board can be double-certified. 321 alloy cannot be hardened by heat treatment, only by cold work. It is easily welded and machined in standard shop manufacturing practices.

Description for our production range:

our products packing:

APPLICATIONS :

• Stainless steel Reheater Tubes and Superheater Tubes for Boiler
• Aircraft exhaust manifolds
• Expansion joints
• Bellows
• Furnace parts
• Heating element tubing
• Heat Exchanger

Physical Properties

AISI 321 steel physical properties are given in the following lists, including density, thermal expansion, elastic modulus, thermal conductivity, specific heat capacity and electrical resistance.

Notes:

10-6·K-1 = 10-6/K

1 Ω·mm²/m = 1 μΩ·m

1 g/cm3 = 1 kg/dm3 = 1000 kg/m3

1 GPa = 1 kN/mm2

1 MPa = 1 N/mm2

other supplement:

1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8" TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"

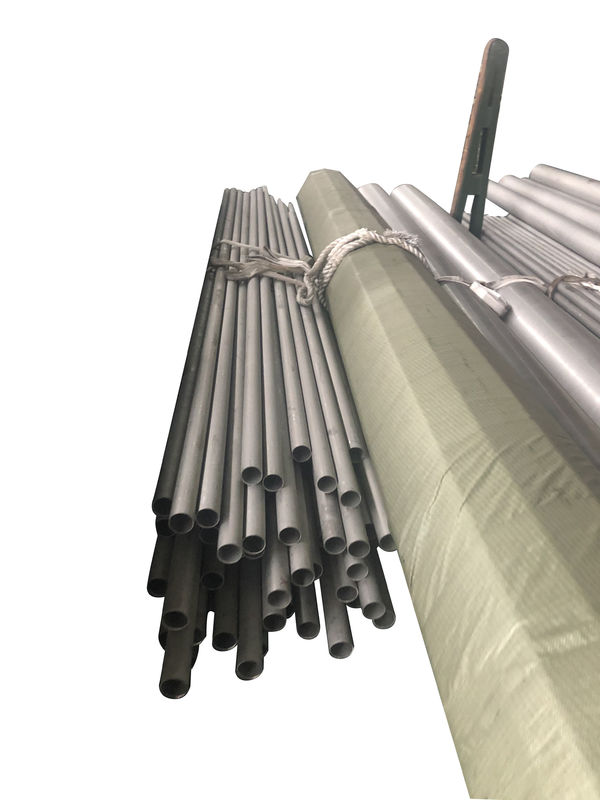

6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
