Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: zheheng steel
Chứng nhận: iso9001
Số mô hình: 88,9mm
Tài liệu: Sổ tay sản phẩm PDF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: Có thể thương lượng
chi tiết đóng gói: Theo bó với vật liệu chống thấm nước, hoặc đóng gói bằng thùng gỗ
Thời gian giao hàng: 30 NGÀY
Điều khoản thanh toán: L/c, t/t, d/a, d/p
Khả năng cung cấp: 50TẤN/30 NGÀY
Vật liệu: |
1.4436 |
Tiêu chuẩn: |
ASTM, GB, JIS, DIN, En, AISI |
hình dạng: |
SCH80S |
Kỹ thuật: |
vẽ nguội |
Ứng dụng: |
Hóa chất |
Bưu kiện: |
Đóng gói dệt |
OD: |
6-830mm |
Vật liệu: |
1.4436 |
Tiêu chuẩn: |
ASTM, GB, JIS, DIN, En, AISI |
hình dạng: |
SCH80S |
Kỹ thuật: |
vẽ nguội |
Ứng dụng: |
Hóa chất |
Bưu kiện: |
Đóng gói dệt |
OD: |
6-830mm |

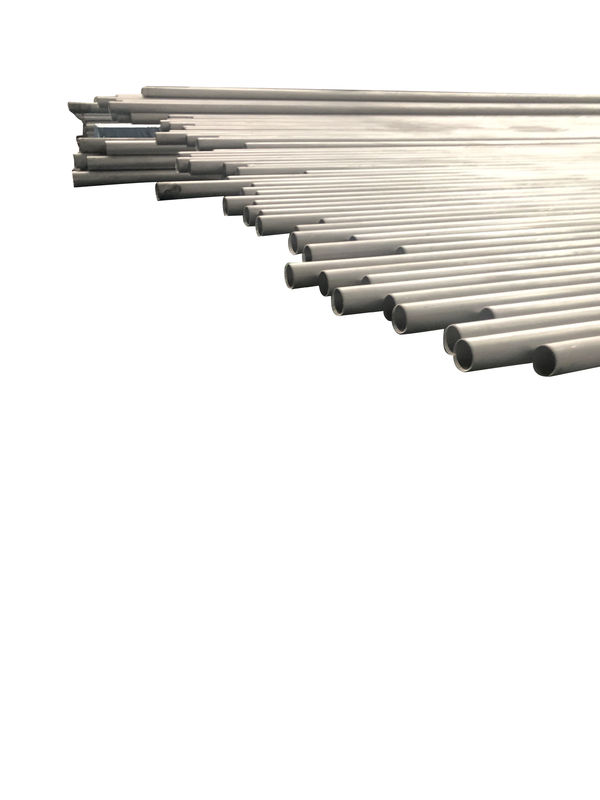

EN 1.4436 (X3CrNiMo17-13-3) Stainless Steel Tube Sch80S intended for pipelines
Introduction to products:
EN 1.4436 stainless steel is an austenitic stainless steel used for primary forming into forgings. The properties cited are applicable to solution annealing (AT) conditions. 1.4436 is the EN digital identifier for the material. X3CrNiMo17-13-3 is the chemical name for EN.
1.4436 is the addition of hydrogen on the basis of 316, but the carbon content is at its upper limit, and it is mostly used for heat resistance purposes, and the thermal strength is higher than that of non-molybdenum steel, with good processability, weldability and high temperature oxidation resistance.
APPLICATIONS :
It is mainly used on pitting resistant materials. The steel pipes and fittings of boiler superheater, heat exchanger, catalyst, condenser, etc. can be used for heat resistance requirements.
Chemical Composition of 1.4436
| Chemical Composition, % | ||||||||||||
| Country (Region) | Standard | Steel Grade (Steel Number) | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | Ti | Mo | |
| European Union | EN 10216 | X3CrNiMo17-13-3 (1.4436) |
MIN |
16.5 |
10.5 |
5xC to 0.70 |
2 to 2.5 | |||||
| MAX | 0.08 | 1 | 2 | 0.04 | 0.015 | 18.5 | 13.5 | |||||
Description for our production range:
Name :Stainless Steel seamless Pipe
Standard :EN10216-5 , EN10216-2,DIN 17456 , DIN 17458,ASTM A312,
A213, A269, A511, A789, A790 ETC,GOST 9941 , GOST 5632,
JIS G3459 , JIS G3463,GB/T14975,GB/T14975, GB13296, GB5310, GB9948
Material Grade :
1.4436
Diameter :OD: 6-830mm
W.T: 0.6mm - 60mm
Length :Up to 13 meter or as customers' request
Tolerance :According to the Standard.
Surface :
Natural Color of annealing & pickling, 180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish
Test :
UT, ET, HT, RT,ect, and others according to the standard,
or as the requests of the customer
our products packing:
Tensile Requirements – Stainless Steel 310S/310H:
Tensile Strength (KSI): 75
Yield Strength (KSI): 30
Notes:
10-6·K-1 = 10-6/K
1 Ω·mm²/m = 1 μΩ·m
1 g/cm3 = 1 kg/dm3 = 1000 kg/m3
1 GPa = 1 kN/mm2
1 MPa = 1 N/mm2
other supplement:
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8" TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
