Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: zheheng
Chứng nhận: ISO9001 PED
Số mô hình: 1"*sch10s
Tài liệu: Sổ tay sản phẩm PDF
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: Có thể thương lượng
chi tiết đóng gói: Theo bó với vật liệu chống thấm nước, hoặc đóng gói bằng thùng gỗ
Thời gian giao hàng: 30 NGÀY
Điều khoản thanh toán: L/c, t/t, d/a, d/p
Khả năng cung cấp: 50TẤN/30 NGÀY
Vật liệu: |
Dàn ống thép không gỉ |
Tiêu chuẩn: |
ASTM, EN, DIN |
Kiểu: |
Liền mạch |
Kỹ thuật: |
vẽ lạnh |
Đường kính ngoài:: |
6 mm-630mm |
Bề mặt:: |
ủ sáng |
Vật liệu: |
Dàn ống thép không gỉ |
Tiêu chuẩn: |
ASTM, EN, DIN |
Kiểu: |
Liền mạch |
Kỹ thuật: |
vẽ lạnh |
Đường kính ngoài:: |
6 mm-630mm |
Bề mặt:: |
ủ sáng |
Application:
In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts
Specification:
Outside Diameter: 1 1/8''~36''
Wall Thickness:
SCH 5, SCH 10S, SCH 40S, SCH 80S
Standard:
ASTM A240, ASTM A269, ASTM A312, ASTM A358, ASTM A77
Material Grade:
200 series: 201,202.204Cu.
300series: 301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310,310S,316,316L,321.
400series: 410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C.
Duplex and Others:
2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc.
Size:
Diameter from 10mm to 1000mm,
thickness from 0.5mm to 50mm
Surface:
Annealed, Pickling, bright,matt,polished,mirror.
Packing:
Waterproof Paper Wrapped, Packed in Wooden Cabins
You can select different sizes stainless steel products with high quality from a reliable manufacturer with reasonable price. We can supply stainless tube/pipe, stainless steel sheet&plate, stainless steel bar, stainless steel wire, stainless steel coil etc.
Product Description
Standard & Tolerance: ASTM A213,ASTM A269,EN10216-5 TC1,D4/T3
NDT: Eddy Current or Hydraulic Test
Heat Treatment: Bright Annealed
| austenitic-ferritic stainless steel(duplex steel) | ||||||||||
| 23 | 0Cr26Ni5Mo2 | - | SUS329J1 | 329 | S32900 | STS329J1 | 1.4477 | - | 329J1 | 329J1 |
| 24 | 00Cr18Ni5Mo3Si2 | 022Cr19Ni5Mo3Si2N | SUS329J3L | - | S31803 | STS329J3L | 1.4462 | - | 329J3L | 329J3L |
3.1Chemical Composition:3. Material2.Description:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 201(1Cr17Mn6Ni5N) | ≤0.15 | ≤1.0 | ≤5.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | — | ≤0.25 |
| 202(1Cr18Mn8Ni5N) | ≤0.15 | ≤0.07 | ≤7.5 | ≤0.06 | ≤0.03 | 4.0-6.0 | 17.0-19.0 | — | ≤0.25 |
| 304(0Cr18Ni9) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
| 304L(00Cr18Ni10) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
3.2 Mechanical Property:
| ASTM | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation (%) | Hardness (HRB) |
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥482 | ≥170 | ≥40 | ≤88 |
4.0 Application:
|
Application
|
Architectural/Civil Engineer | Handrails, door and window fittings, steel furniture, structural sections etc |
Types of inspection
Conformity to the requirements of the order, for tubes in accordance with this Part of EN 10216, shall be verified
by specific inspection.
When an inspection document 3.1 is specified, the material manufacturer shall state in the confirmation of the
order whether he is operating according to a “quality-assurance system”, certified by a competent Body
established within the Community and having undergone a specific assessment for materials.
NOTE See the EU Directive 97/23/EC, Annex I, section 4.3 third paragraph and for further information the Guidelines of
the EU Commission and the Member States for its interpretation

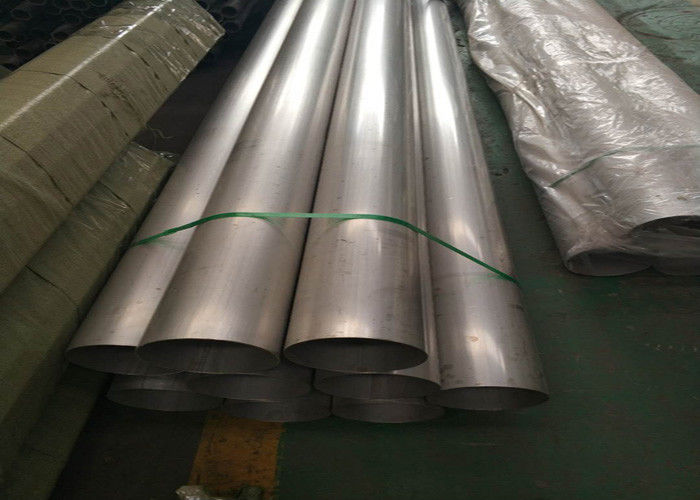

high precision ss instrumentation seamless stainless steel tubing show
